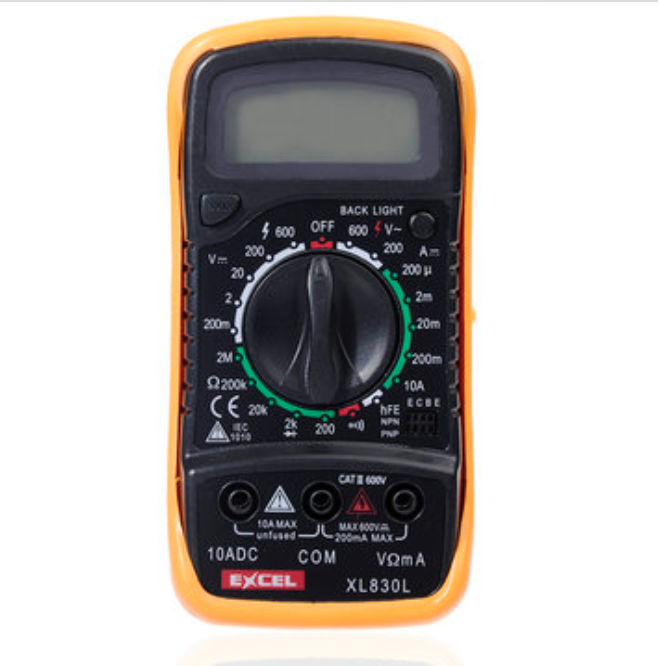

XL830L LCD Digital Voltmeter Ohmmeter Ampmeter OHM Multimeter Tester
This is a XL830L handheld digital multimeter for measuring DC and AC voltage, DC current, Resistance, Diode and Transistor. The meter is battery operated. A must for any quad builder's workbench.
15mm high LCD Display Max display : 1999, Auto polarity display Portable and compact design;overload protection on all ranges Diode assembly test / Transistor P-N junction test/Transistor HFE test Continuity test with buzzer sound in circuit Low battery voltage indication Data hold function
DC Voltage : 200mV/2V/20V/200V +- 0.5%, 600V +- 0.8% AC Voltage : 200V/600V +- 1.2% DC Current : 200μA, 2mA, 20mA +- 1%, 200mA +- 1.5%, 10A +- 3% Resistance : 200Ohms,2KOhms, 20KOhms, 200KOhms, 2MOhms +- 0.8% Display : LCD, 1999 counts Fuse protection : F-200mA/250V Operating Temperature : -0C to 40C Overrange Indication : Only figure "1" on the display Polarity Indication : "-" displayed for negative polarity Low Battery Indication : - /+ display Power by One 9V battery (installed)
Specifications :
Maximum voltage between terminals and earth ground
CAT II600V
Fuse protection
F 200mA/250V
Power
9V battery, NEDA1640 or 6F22
Display
LCD, 1999 counts, updates 2-3/sec
Measuring method
Dual-slope integration A/D converter
Overrange Indication
Only figure “1” on the display
Polarity indication
“-“ displayed for negative polarity
Operating Environment
0 to 40 Celsius
Storage temperature
-10 to 50 Celsius
Low battery indication
“- +” appears on the display
Size
138mmX 69mm X 31mm
Weight
Approx. 240g
Notes :
Do not change the internal circuity. Do not connect it to voltage over 1000VDC or 750VAC. Make sure to set your ranges appropriately. If you don't know, research first. Remove the pen and cut off power before replacing battery / fuze.
Package includes :
1 x XL830L Digital LCD Multimeter 1 x Test Leads line(red&black) 1 x 9V Battery Included 1 x User Manual
