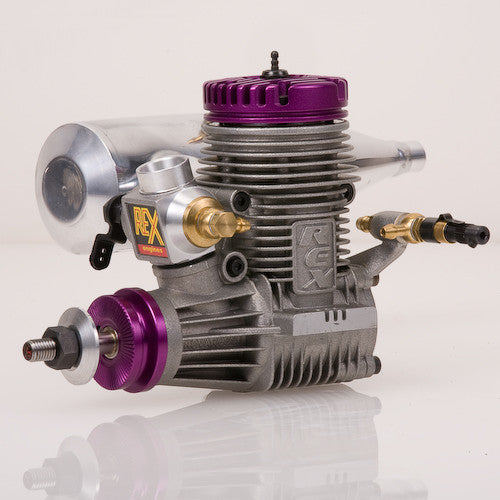

Revised Package Deal - Novarossi Rex .R57CR 3D Aircraft Engine with Tuned Muffler & Parts Kit

Revised Package Deal - Novarossi Rex .R57CR 3D Aircraft Engine with Tuned Muffler & Parts Kit

  • Category: Novarossi Rex R57CR Aircraft Engine
Availability: In Stock
$578.76
Compare

Engine with Tuned Muffler and Tune-up Parts listed below


Muffler - 50359

Head Screws - 01009

Backplate - 13371

Backplate Screws - 27001

Piston Sleeve Rod Assembly - 08378

Carb - 10372

Crankshaft - 15371

Thrustwasher - 20370

Shims - 3903

Filter - 35350

Exhaust Gasket - 43001

Full Speed Needle Bearing - 11903

High Speed Needle - 11908

Piston / Sleeve - 08378

O-Rings - 11909

Engine Pawl Spring Clip - 11371

Engine Washer - 11028

Prop Nut - 20830

Engine Muffler Screws - 50603

Head Gasket - 3950

Wrist Pin Clips - 5351

CrankCase - 9370

Crankshaft Key - 20402

Crankshaft Nut - 20452






The Cesare Rossi line of engines are designed for competition and 3D flying where light weight, high performance and responsiveness are important. Specifications: 9.35cc displacement, max horsepower at 18,000 ROM, range 2K - 21,600K, bore x stroke 23.33 x 21.94mm, 5 ports, two ball bearings, 16mm crankshaft, roatray carburetor with 9mm ID, HR3S glow plug, 411 grams. Rear mounted needle valve may be mounted directly on to carburetor, should installation require a front mounted needle. 10% nitro.Higher nitro with the addition of head shims and glow plug changes. We recommend the Xoar 11 x 7 or equivalent props as a starting point.

Supplied with muffler # 50359.  Optional backplates without the rear mount needle post are available for purchase. Needle valve assembly with work with carburetor mounted on engine or on backplate. Your choice!
