Tiger Motor F40 V2 (2305) 2400Kv (2 Motor Set)

Tiger Motor F40 V2 (2305) 2400Kv (2 Motor Set)

  • Category: 22XX Motors, Black Friday, Motors, Multirotor, New Motors
Availability: In Stock

This is a 2 Motor Set.

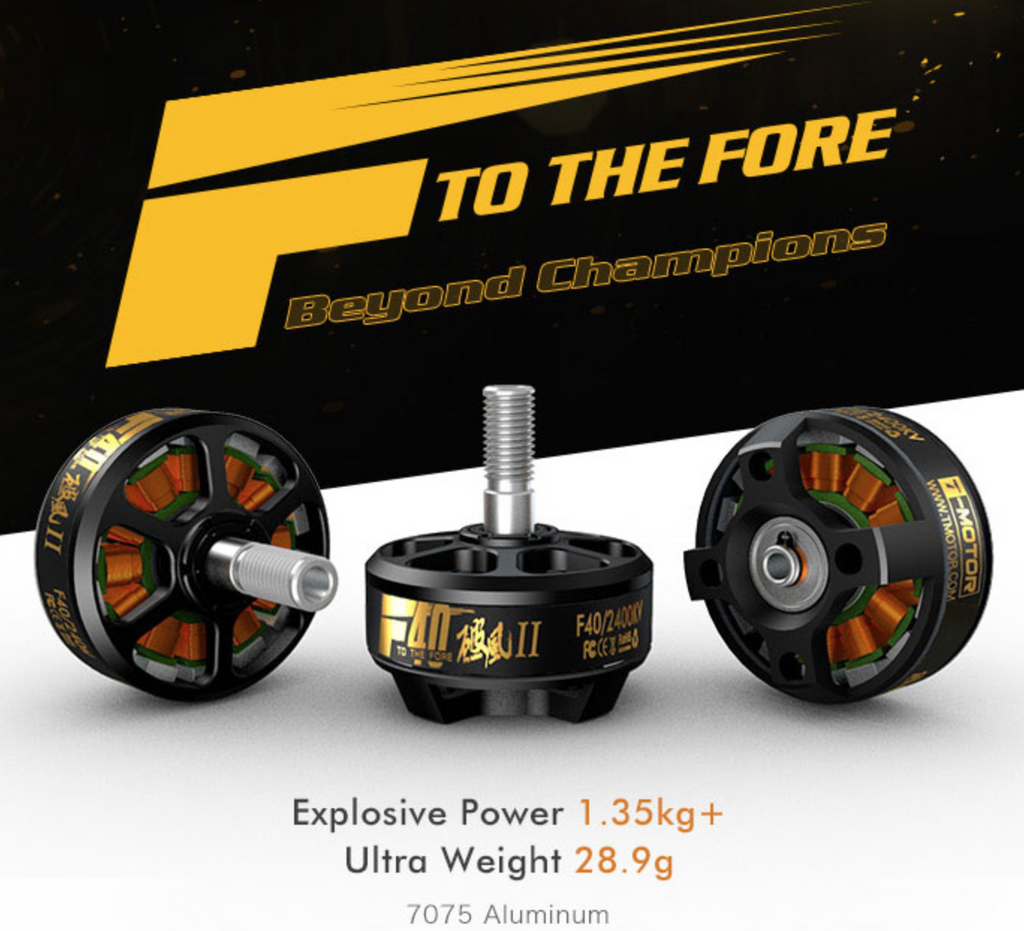

The Tiger Motor F40 V2 (2305) 2400Kv Motor has been design and built specifically for FPV Racing.

This newest V2 version has a 2305 sized stator and an elegant motor design to keep it light weight and durable.

Using a steel shaft and a unique structural design to prevent bending and deformation on crashes, this motor is built to take a punch. It is very quick and has a fast response. Also uses a creative way of heat dissipation, reducing 15% more heat than other motors. The F-Series FPV motor by Tiger Motors is one of the best FPV racing motors around.


  • 2x F40 V2 (2305) 2400Kv Motor
  • 2x Locking Nuts
  • 2x Socket Head Screws


  • KV: 2400
  • Configu ration: 12N14P
  • Stator Diameter: 23mm
  • Stator Length: 5mm
  • Shaft Diameter: 4mm
  • Motor Dimensions (Dia.*Len): Φ28.4×31mm
  • Weight (g): 27.6g
  • ldle current(10)@10v(A): 1.2A
  • No.of Cells(Lipo): 3-4S
  • Cable length: 60mm
